GROOVED WALL PANELS
DESCRIPTION:
Grooved wall panels improved by Perfopan engineers to provide best sound emission in a decorative way. Acoustic wood panels have grooves in the front and have holes at the back.
USES:
Multi-purpose halls, auditoriums, offices, meeting rooms, hotels, theaters, discos, cinemas, restaurants, public buildings, gymnasiums.
TECHNICAL PROPERTIES:
Maximum panel dimension is 130cmx340cm, ideal dimensions are 70cmx140cm, 120x120cm. Vein directions of the wood veneered panels please contact Perfopan technical office.
Melamine Panel: 18mm thickness, weight 13.5kg/m²
Wood Veneered Panel: 18mm thickness, weight 14kg/m²
FIREPROOF SPECIFICATIONS :
A) 18mm melamine DIN 4102 - B2
B) 18mm wood veneered combustion delay polish applied - A1
ACOUSTIC EMISSION SPECIFICATIONS :
We can produce different type of wall panels for different acoustic performances according to the projects.
DESCRIPTION:
Grooved wall panels improved by Perfopan engineers to provide best sound emission in a decorative way. Acoustic wood panels have grooves in the front and have holes at the back.
USES:
Multi-purpose halls, auditoriums, offices, meeting rooms, hotels, theaters, discos, cinemas, restaurants, public buildings, gymnasiums.
TECHNICAL PROPERTIES:
Maximum panel dimension is 130cmx340cm, ideal dimensions are 70cmx140cm, 120x120cm. Vein directions of the wood veneered panels please contact Perfopan technical office.
Melamine Panel: 18mm thickness, weight 13.5kg/m²
Wood Veneered Panel: 18mm thickness, weight 14kg/m²
FIREPROOF SPECIFICATIONS :
A) 18mm melamine DIN 4102 - B2
B) 18mm wood veneered combustion delay polish applied - A1
ACOUSTIC EMISSION SPECIFICATIONS :
We can produce different type of wall panels for different acoustic performances according to the projects.

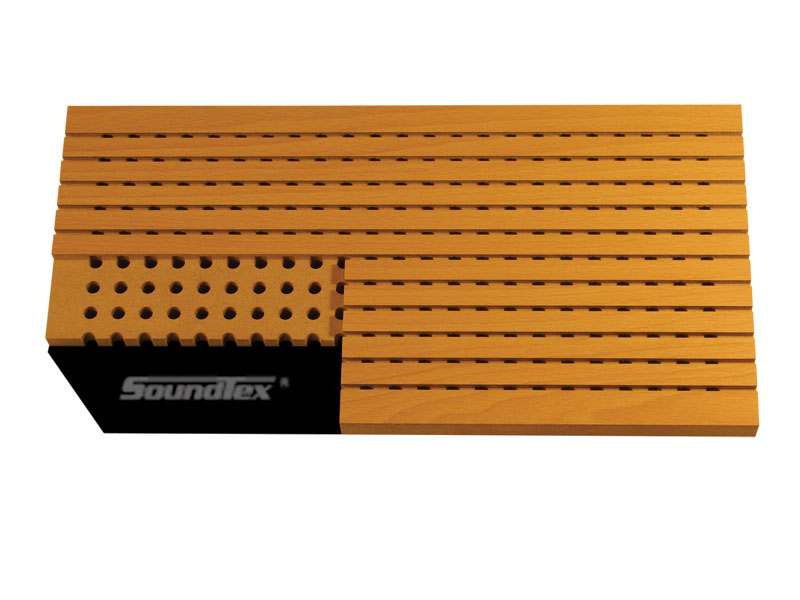

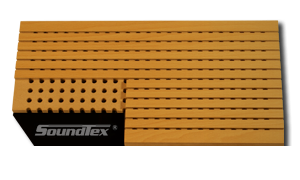

KOD NO. 3 F 13A-PR % 13 DS 4000
Groove distance is 3.2mm in front of the panel. The distance between each groove is 13mm. There are 4000holes/m² at the back of this model. The diameter of each hole is 10mm.
Perforation ratio: 13%
Frequency type: This model provides high acoustic absorption in mid frequency.
Product Pic. Technic Table
Perforation ratio: 13%
Frequency type: This model provides high acoustic absorption in mid frequency.
Product Pic. Technic Table

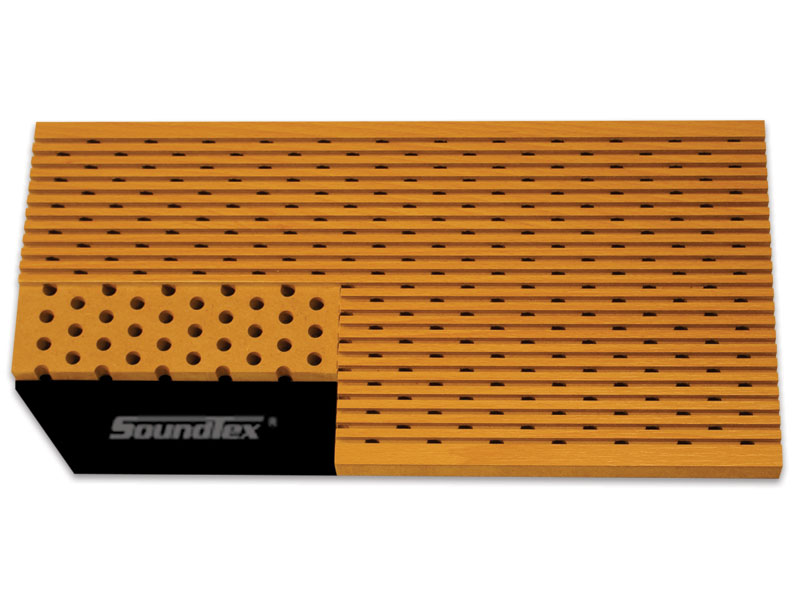

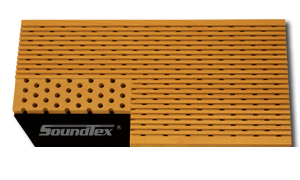

KOD NO. 3F 5A - PR %15 - DS 4000
Groove distance is 3.2mm in front of the panel. The distance between each groove is 4.8mm. There are 4000holes/m² at the back of this model. The diameter of each hole is 12mm.
Perforation ratio: 15%
Frequency type: This model provides high acoustic absorption in mid and high frequencies
Product Pic. Technic Table
Perforation ratio: 15%
Frequency type: This model provides high acoustic absorption in mid and high frequencies
Product Pic. Technic Table

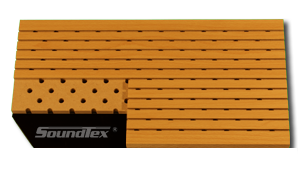

KOD NO. 3F 13A – PR %6, DS 2000
Groove distance is 3.2mm in front of the panel. The distance between each groove is 13mm. There are 2000holes/m² at the back of this model. The diameter of each hole is 10mm.
Perforation ratio: 6%
Frequency type: This model provides high acoustic absorption in low and mid frequencies.
Product Pic. Technic Table
Perforation ratio: 6%
Frequency type: This model provides high acoustic absorption in low and mid frequencies.
Product Pic. Technic Table

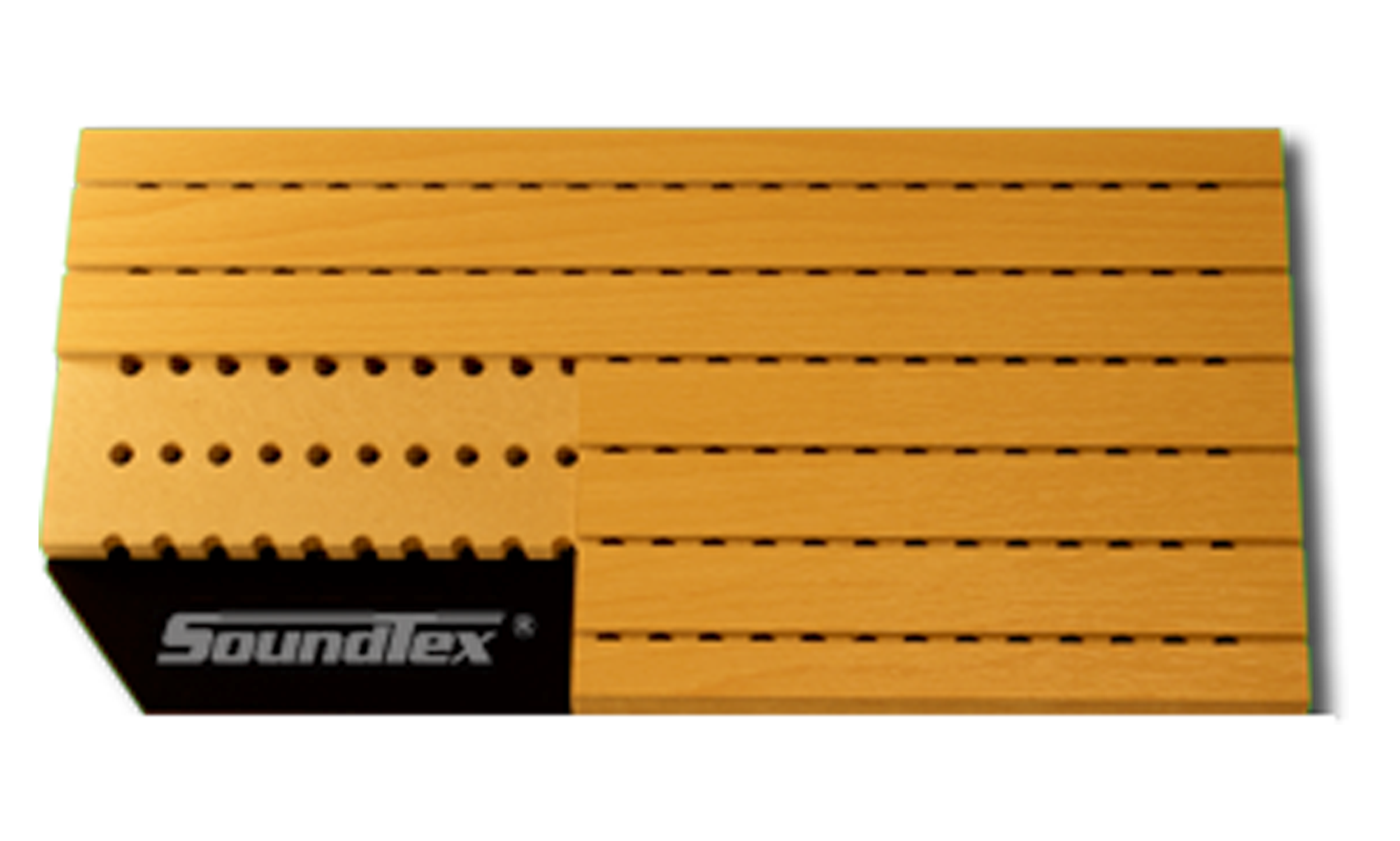

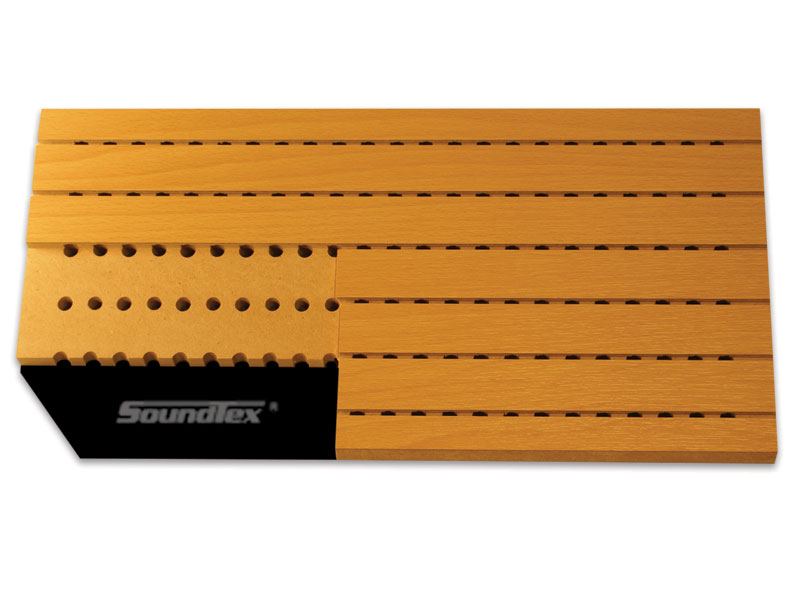

KOD NO. 4F28A–PR-%8, DS 2000
Groove distance is 4mm in front of the panel. The distance between each groove is 28mm. There are 2000holes/m² at the back of this model. The diameter of each hole is 10mm.
Perforation ratio: 8%
Frequency type: This model provides high acoustic absorption in low and mid frequencies.
Product Pic. Technic Table
Perforation ratio: 8%
Frequency type: This model provides high acoustic absorption in low and mid frequencies.
Product Pic. Technic Table

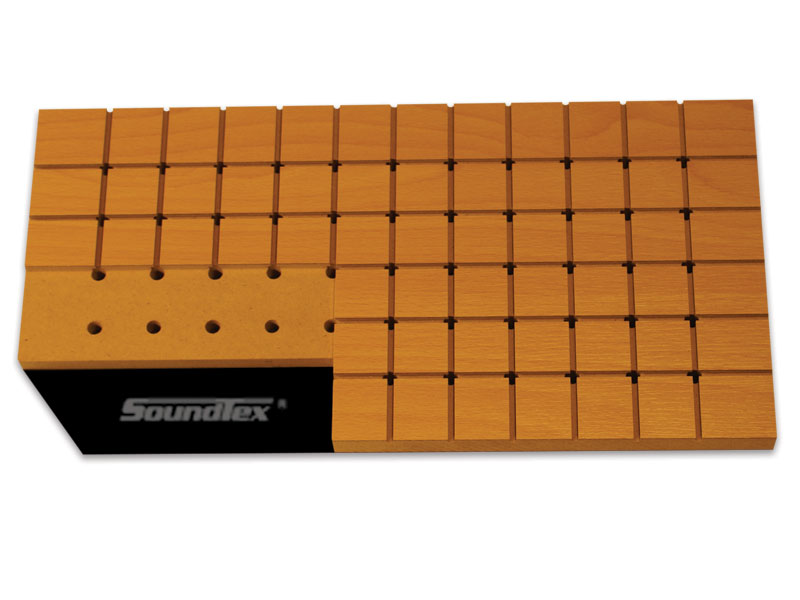

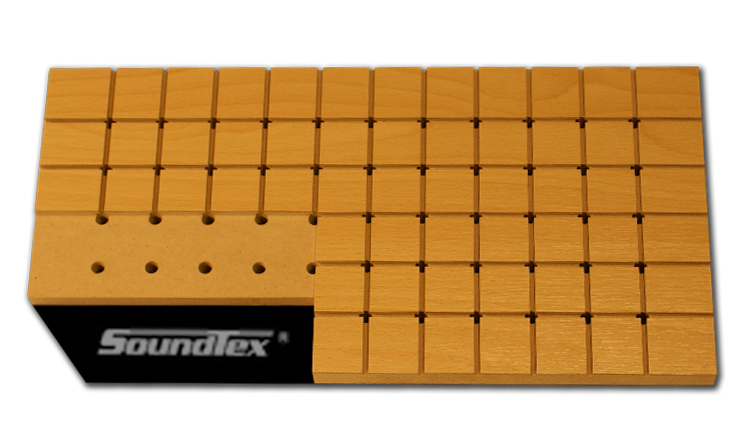

KOD NO. DK 32x32 PR %6 DS 1000
The diameter of each hole is 10mm. (1000 holes/ m²). The distance between the holes are 32mm. There are horizontal and vertical grooves at the back. Thicknesses are 3.2mm. These grooves, intersects in the center of the holes.
Perforation ratio: 6%
Frequency type: This model provides high acoustic absorption in high frequency.
Product Pic. Technic Table
Perforation ratio: 6%
Frequency type: This model provides high acoustic absorption in high frequency.
Product Pic. Technic Table

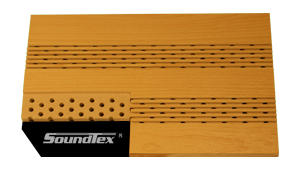

KOD NO. GBM PR % 7 DS 3000
In front of the panel there are six grooves, the distance between each grooves are 5mm and saw thicknesses are 43mm. Versatile perforation at the back and 3000holes/m². The diameter of each hole is 8mm.
Perforation ratio: 7%
Frequency type: This model provides high acoustic absorption in high frequency.
Product Pic. Technic Table
Perforation ratio: 7%
Frequency type: This model provides high acoustic absorption in high frequency.
Product Pic. Technic Table

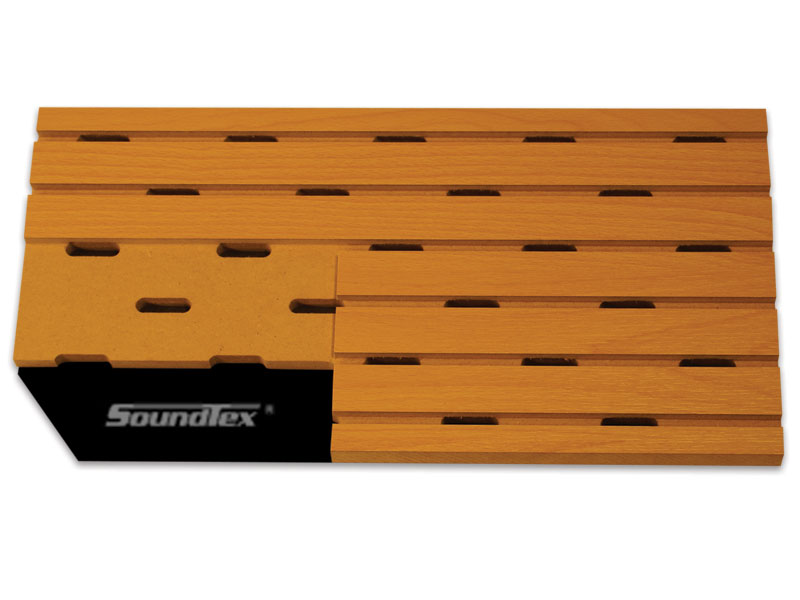

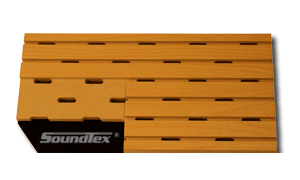

KOD NO. SLT-4X28 PR % 6
Groove distance is 4mm in front of the panel. The distance between each groove is 28mm. At the back of the grooves there are slot rooms. These slots are 30mm (650piece/ m²). Perforation ratio varies according to width of grooves and slot dimensions.
Perforation ratio: 6%
Frequency type: This model provides high acoustic absorption in low and mid frequencies.
Product Pic. Technic Table
Product Pic. Technic Table
